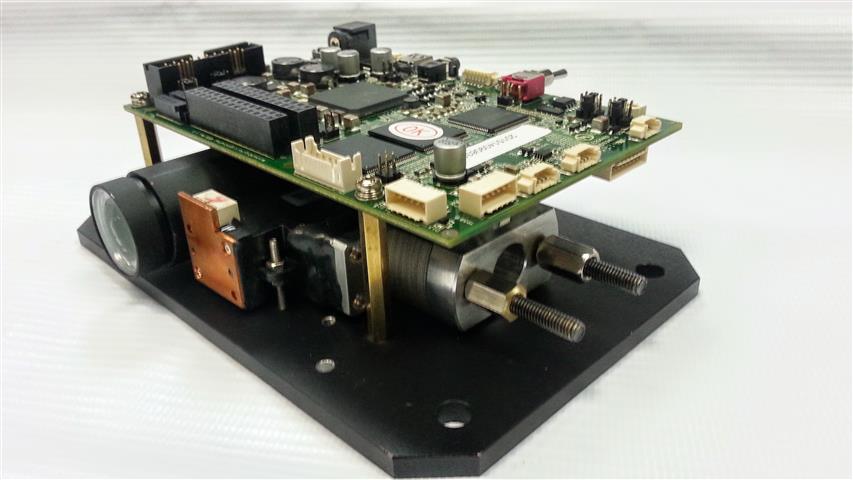

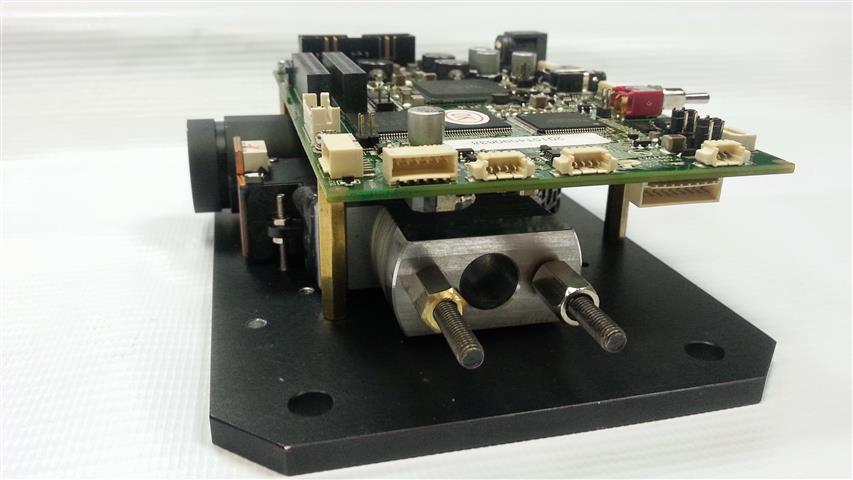

EKB’s  DLP® LightCrafter™ Fiber-E4500MKII™ development module provides a flexible light steering solution with Different Illumination solution for Variety of applications including UV, IR, RGB, high brightness and resolution for industrial, medical and scientific applications. DLP LightCrafter Fiber- E4500MKII™ features the 0.45 WXGA chipset and offers a compelling combination of resolution, brightness, and programmability in a small form factor.



Laser Illumination enables users Extended depth of focus.


Developers can easily create, store, and display high-speed pattern sequences through DLP LightCrafter Fiber-E4500’s USB-based application programming interface (API) and easy-to-use graphical user interface (GUI). Two configurable input/output triggers allow for convenient synchronization with cameras, sensors, or other peripheral devices. The DLP LightCrafter Fiber- E4500’s feature set makes it an ideal platform for powering industrial 3D machine vision scanners, medical imaging devices, spectrometers, and much more.

Features

  • High speed pattern display with native DLP4500 resolution (912x1140)

                            Up to 4225 Hz binary pattern rate

                            Up to 120 Hz 8-bit grayscale pattern rate

  • Standard FC/PC Connector Multimode Connector, Ø 450 µm
  • Image or video display up to WXGA resolution (1280x800)
  • Two configurable I/O triggers with programmable polarity and rising & falling edge delay control
  • 32MB flash memory for pattern storage
  • USB, Mini HDMI, UART, FPD Link interfaces
  • USB-based API and host GUI
  • Compact size: 122mm x 115mm x 48mm
  • Illumination Options(VIS/NIR/ HP NIR):

 *The VIS 0.45" DMD is designed to work in visible light spectrum. Reduction in lifetime is expected at shorter  wavelengths.

   No warranty is provided when VIS DMD is used outside 420-700nm range.
